TEE UV System
The TEE UV System is specifically designed and manufactured as a critical treatment step for microbial control and Total Organic Carbon (TOC) reduction in pharmaceutical water systems. Engineered in compliance with cGMP and GEP standards, the system ensures effective disinfection through extended UV exposure, thanks to our advanced internal baffle design which maximizes contact time.
Applications
• Applications in pharmaceutical industry for multiple batch vessel and systems for chemical batch processing
• Suitable for processing fermentation, food processing, and chemical batch from liquid materials
Design Guidelines
• Code of practice based on engineering experience
• All pressure vessels designed to ASME Section VIII Div 1
• Fabricated stainless steel tanks designed to a design
• Tanks with direct cooling/heating equipment (Standard)
Construction Features
• All stainless steel construction with superior finish for improved cleaning
• Removable & flexible manholes
• Conical/dished base with full drainage
• Sample valves, CIP spray balls
• Insulation & cladding
• Agitator fitting capability
• Temperature and pH monitoring

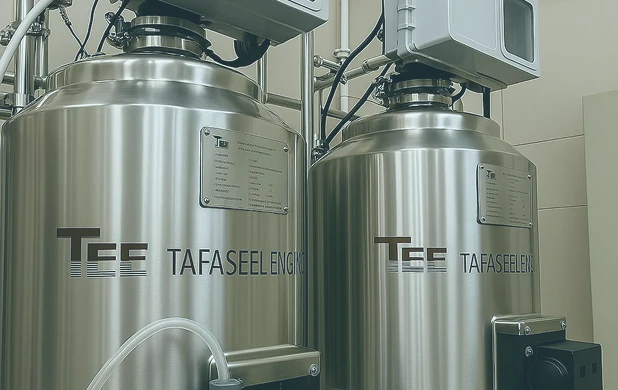

Operating Principle
The softener uses ion-exchange resin to replace calcium (Ca²⁺) and magnesium (Mg²⁺) ions with sodium (Na⁺) ions. Once the resin becomes saturated, a regeneration cycle using sodium chloride (NaCl) restores the resin’s capacity.
Technical Specifications

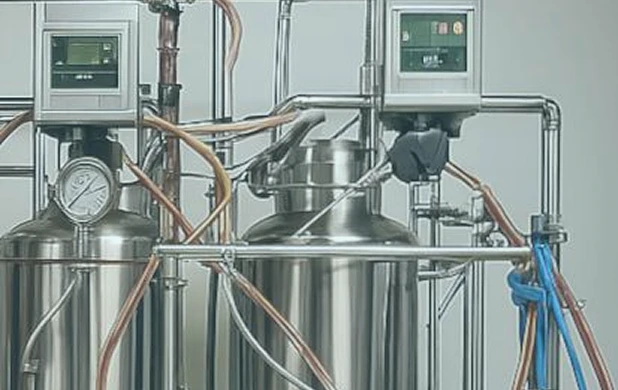

Flow Rate Capacity: 2,000 to 20,000 L/hr Regeneration Method: Co-current or counter-current (as per project requirements) Automation: PLC-controlled with optional SCADA integration (21 CFR Part 11 compliant) Resin Type: Pharmaceutical-grade, high-capacity strong acid cation resin Tank Pressure Rating: Up to 10 bar
Key Benefits
Single-lamp unit can treat up to 8 m³/h Flexible vertical or horizontal mounting Integrated alarms, remote control, 4–20 mA signal output Easy lamp replacement without tools Minimal maintenance Sanitization capability Availability of UV sensor calibration tools
Qualification
UV System are delivered with a complete Qualification Package (C + Q) including all engineering, testing, and certification documentation.
