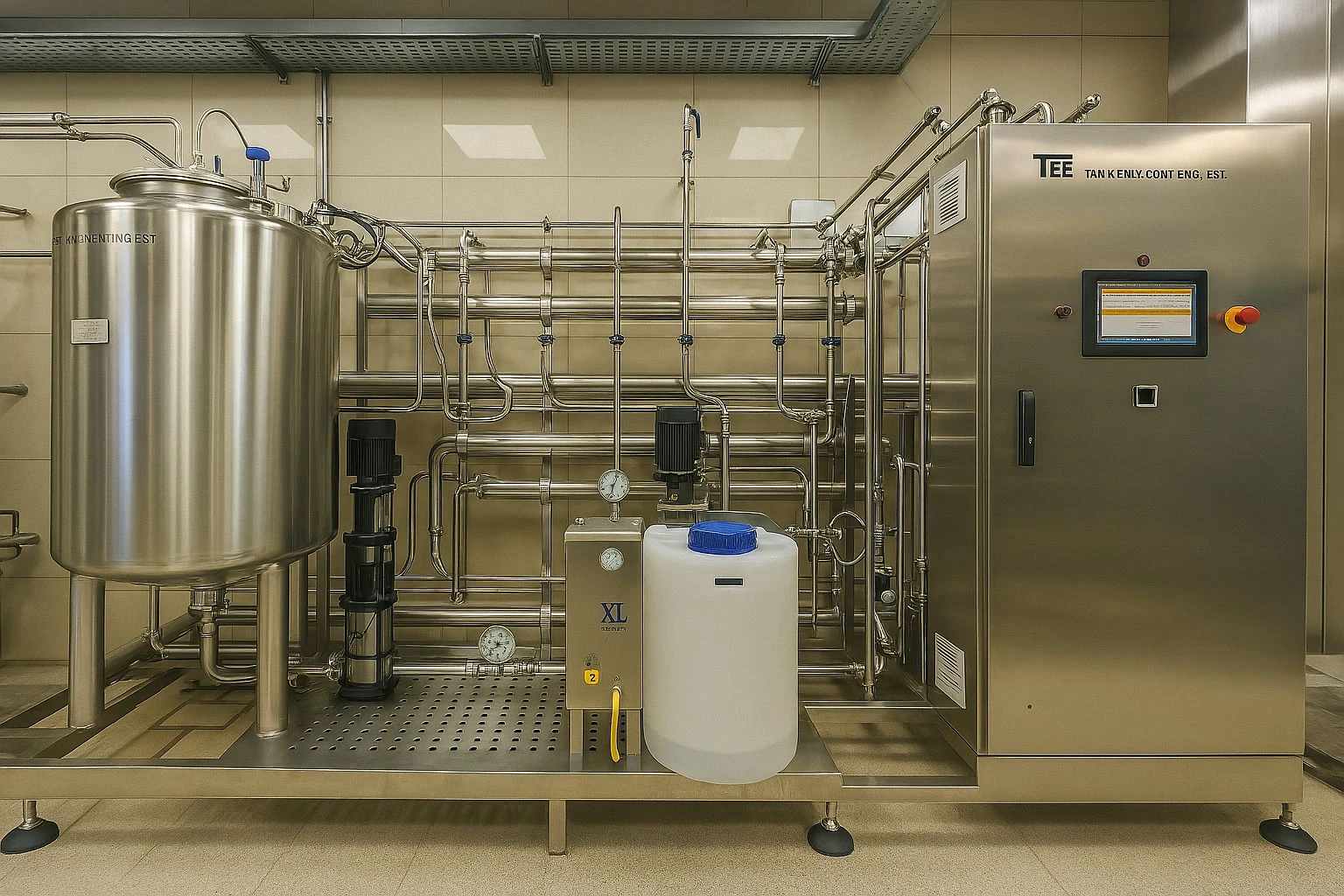

TEE Pure Steam Generator (TPSG)
The TPSG Series from TEE is an advanced Pure Steam Generator engineered to deliver clean, dry, and pyrogen-free steam — fully compliant with international standards for pharmaceutical and biotech applications (e.g., USP, Ph. Eur.). Designed for use in sterilization, CIP/SIP systems, and cleanroom environments, TPSG ensures consistent steam quality and long-term operational reliability.
Design Highlights
- Double Tube Sheet (DTS) heat exchanger design for complete separation between utility and process side

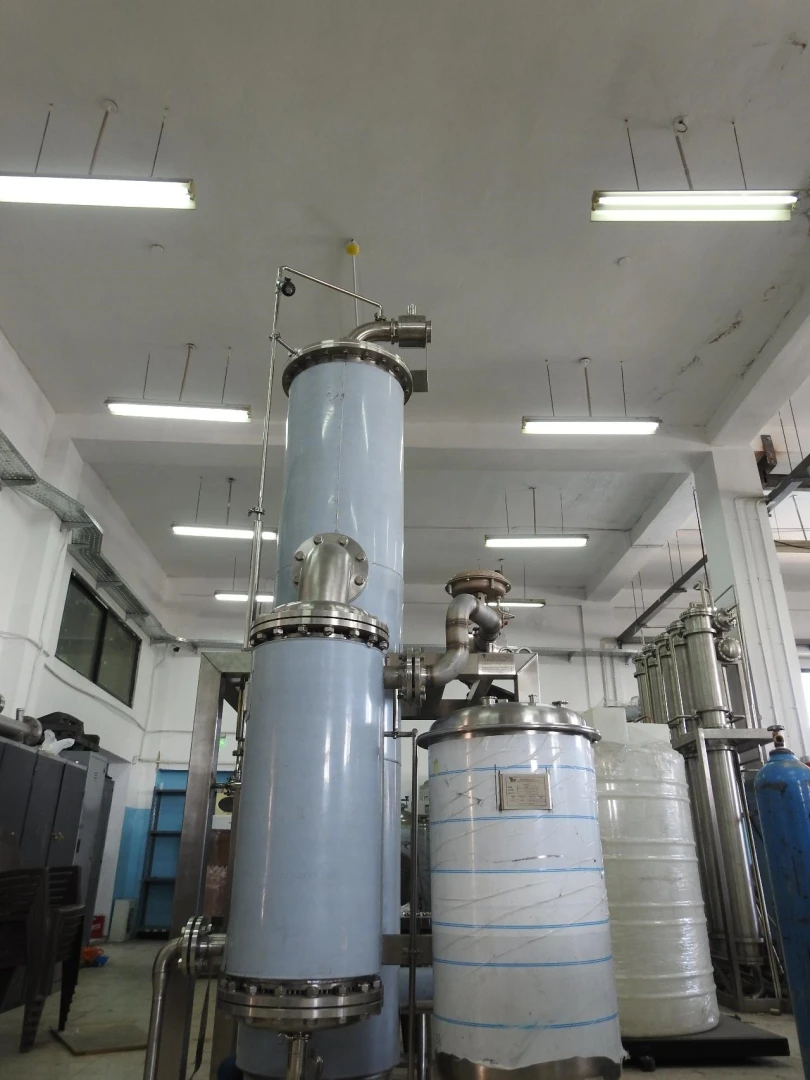

- Steam Purification Column with cavity wing-type separator to remove water droplets and impurities
- Optimized for energy efficiency and minimum endotoxin carryover

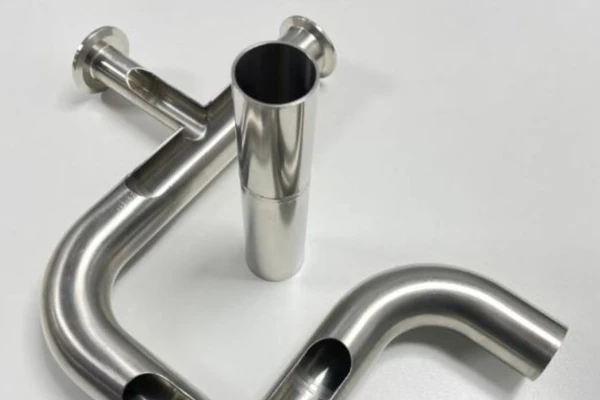

Construction Features
All components are fabricated to meet stringent cGMP and hygienic design requirements: Material: AISI 316L stainless steel (for all product contact surfaces) Surface Finish: Internal Ra ≤ 0.5 µm, fully pickled and passivated Welding: Orbital GTAW with boroscopic inspection Gaskets: High-purity PTFE, compliant with FDA and USP Class VI Pressure Tested for operational safety and regulatory compliance

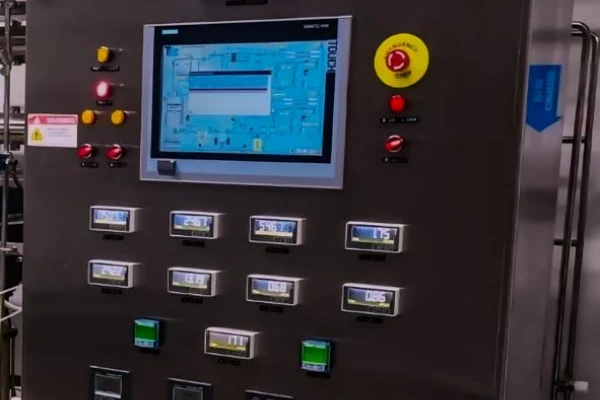

Smart Operating Features
Automation-driven features to enhance reliability, safety, and documentation: Auto Blowdown with shutdown safety logic Auto Drainable Design for easy maintenance and sterilization Auto Sampling for continuous quality monitoring SCADA integration with optional 21 CFR Part 11 compliance
Flexible Capacity Range
Whether you're a small-scale production unit or a high-throughput facility, TPW systems are available in capacities from 200 to 10,000 L/h — with custom designs upon request.
